UHP High Pressure Couplings and Fittings 4100 bar

UHP High Pressure Couplings and Fittings 4100 bar

Couplings, adapters, T-pieces, Y-pieces and Collar and Glands | W.P. 4100 bar (60,000 psi)

With these affordable top quality couplings, ultra high pressure hoses with a working pressure up to 4100 bar (60,000 psi) are easily and safely connected with each other.

The ultra high pressure couplings, adapters, T- pieces and Y- pieces are made of high-quality stainless steel and are supplied complete, including clamp ring and compression nut (Collar and Gland).

The Collars and Glands are also available separately.

Download the brochure or view the affordable product range of PRO-JETTING, for direct delivery from stock below or contact us now for more information!

 Download Brochure

UHP High Pressure Couplings and Fittings 4100 bar

Couplings, adapters, T-pieces, Y-pieces and Collar and Glands | W.P. 4100 bar (60,000 psi)

The cheapest ultra high pressure couplings / adapters / T- pieces / Y- pieces / Gland and Collar. Suitable to a maximum of 4100 bar (60.000 psi).

Hogedruk Koppelingen en Fittingen
Hogedruk Koppelingen en Fittingen
Hogedruk Koppelingen en Fittingen
Hogedruk Koppelingen en Fittingen
Hogedruk Koppelingen en Fittingen

Specifications

Max. Working Pressure: 4100 bar (60,000 psi)
Connections: 1/4" HP, 3/8" HP, 9/16" HP, M16, M20, M30
Types: Coupling, Adapter, T- Piece, Y- Piece, Gland and Collar

Features

  • Well priced
  • Volume discount
  • High quality

Specifications

Max. Working Pressure: 4100 bar (60,000 psi)
Connections: 1/4" HP, 3/8" HP, 9/16" HP, M16, M20, M30
Types: Coupling, Adapter, T- Piece, Y- Piece, Gland and Collar

Features

  • Well priced
  • Volume discount
  • High quality

Available Couplings and Fittings

Item Type W.P. Connections

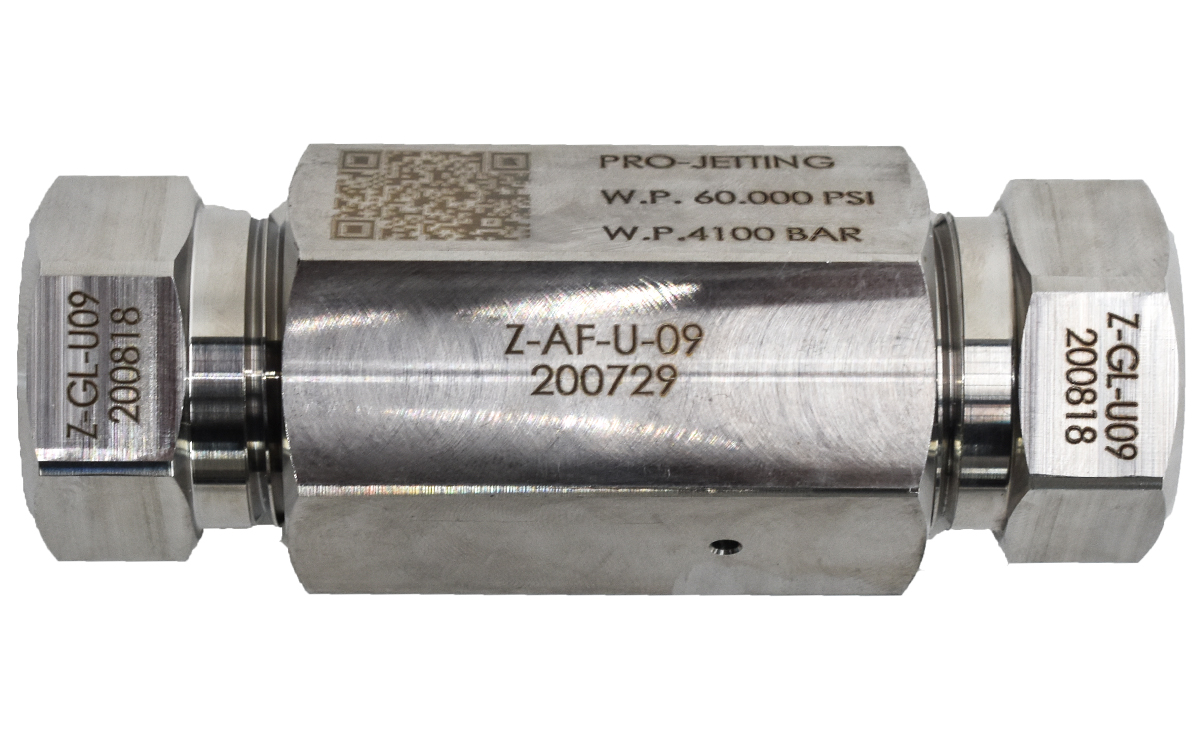

Z-AF-U09 Coupling 4100 bar (60,000 psi) 9/16" HP (1 1/8" UNF)
Z-AF-U06 Coupling 4100 bar (60,000 psi) 3/8" HP (3/4" UNF)
Z-AF-M16 Coupling 4100 bar (60,000 psi) M6 (M16x1,5) HP
Z-AF-M20 Coupling 4100 bar (60,000 psi) M10 (M20x1,5) HP
Z-AF-M30 Coupling 4100 bar (60,000 psi) M14 (M30x2) HP

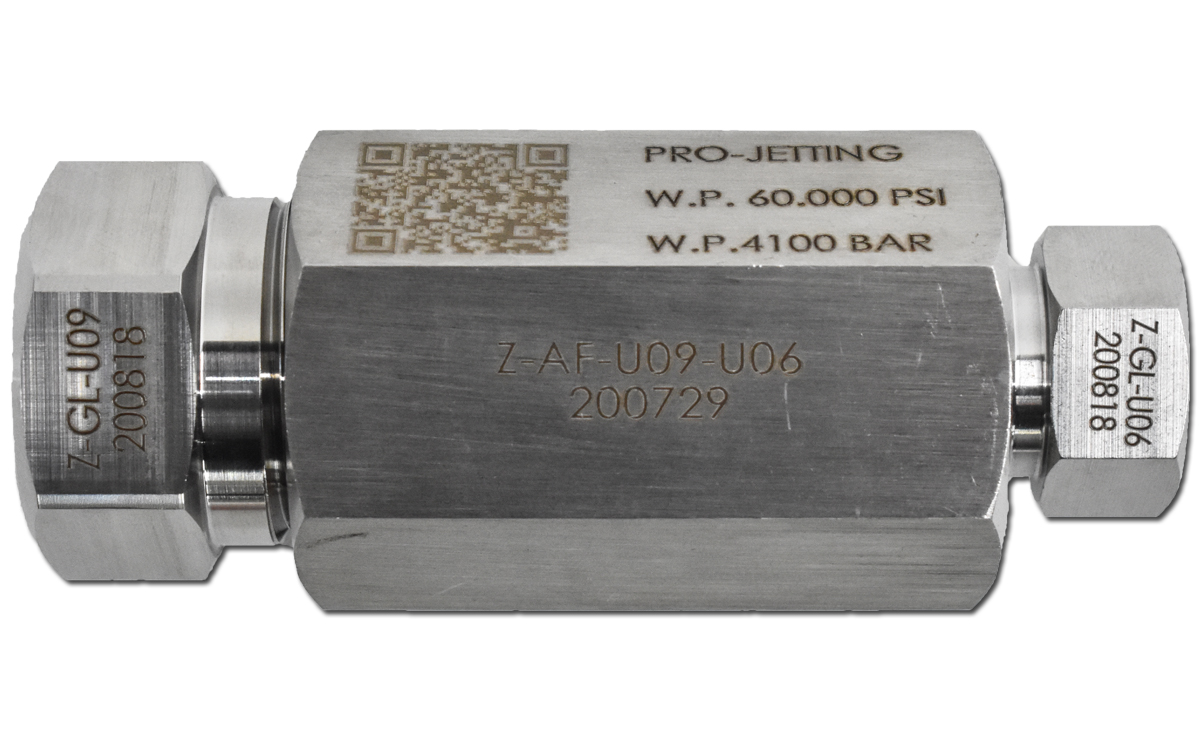

Z-AF-U09-U06 Adapter 4100 bar (60,000 psi) 9/16" HP - 3/8" HP (1 1/8" UNF - 3/4" UNF)
Z-AF-U06-U04 Adapter 4100 bar (60,000 psi) 3/8" HP - 1/4" HP (3/4" UNF - 9/16" UNF)

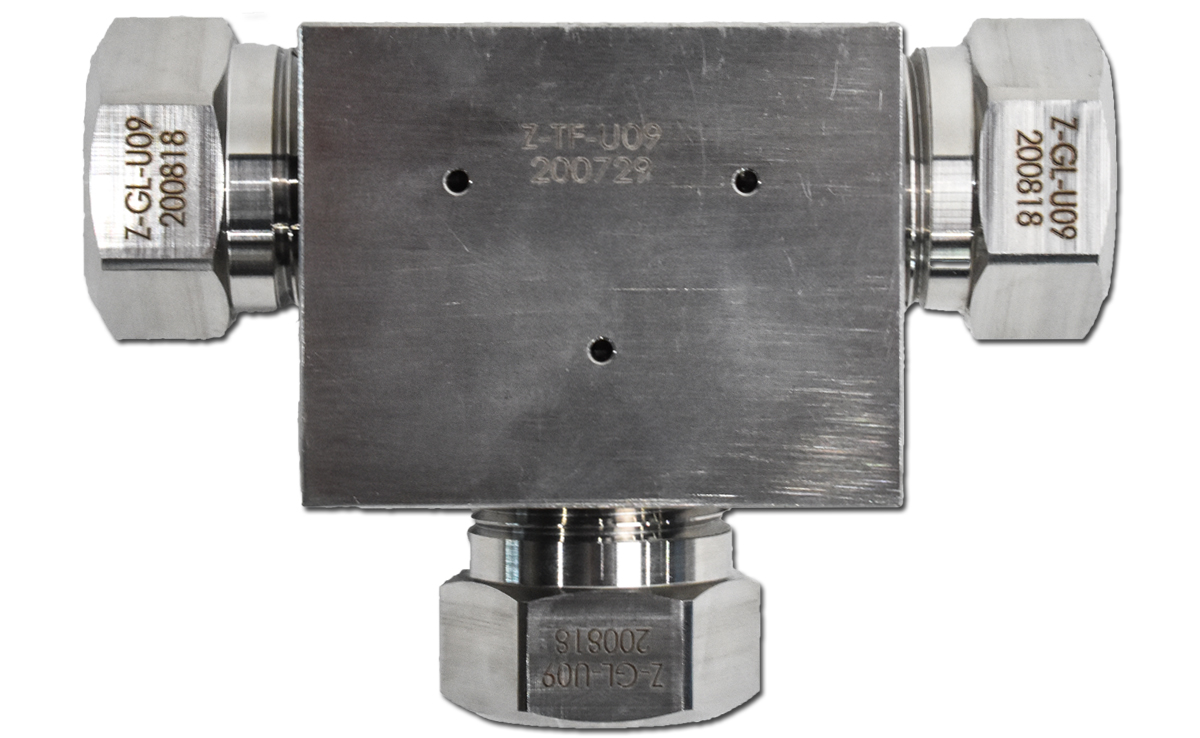

Z-TF-U09 T- Piece 4100 bar (60,000 psi) 9/16" HP (1 1/8" UNF)
Z-TF-U06 T- Piece 4100 bar (60,000 psi) 3/8" HP (3/4" UNF)
Z-TF-M16 T- Piece 4100 bar (60,000 psi) M6 (M16x1,5) HP
Z-TF-M20 T- Piece 4100 bar (60,000 psi) M10 (M20x1,5) HP
Z-TF-M30 T- Piece 4100 bar (60,000 psi) M14 (M30x2) HP

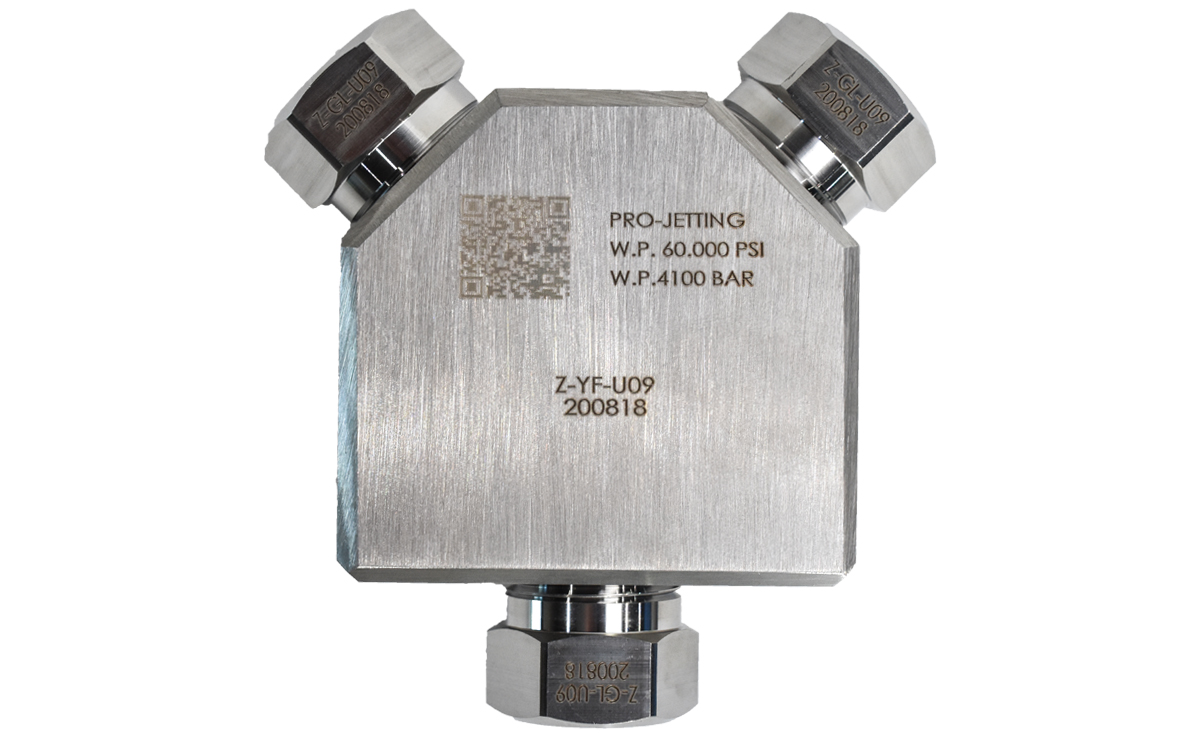

Z-YF-U09 Y- Piece 4100 bar (60,000 psi) 9/16" HP (1 1/8" UNF)
Z-YF-U06 Y- Piece 4100 bar (60,000 psi) 3/8" HP (3/4" UNF)
Z-YF-M16 Y- Piece 4100 bar (60,000 psi) M6 (M16x1,5) HP
Z-YF-M20 Y- Piece 4100 bar (60,000 psi) M10 (M20x1,5) HP
Z-YF-M30 Y- Piece 4100 bar (60,000 psi) M14 (M30x2) HP

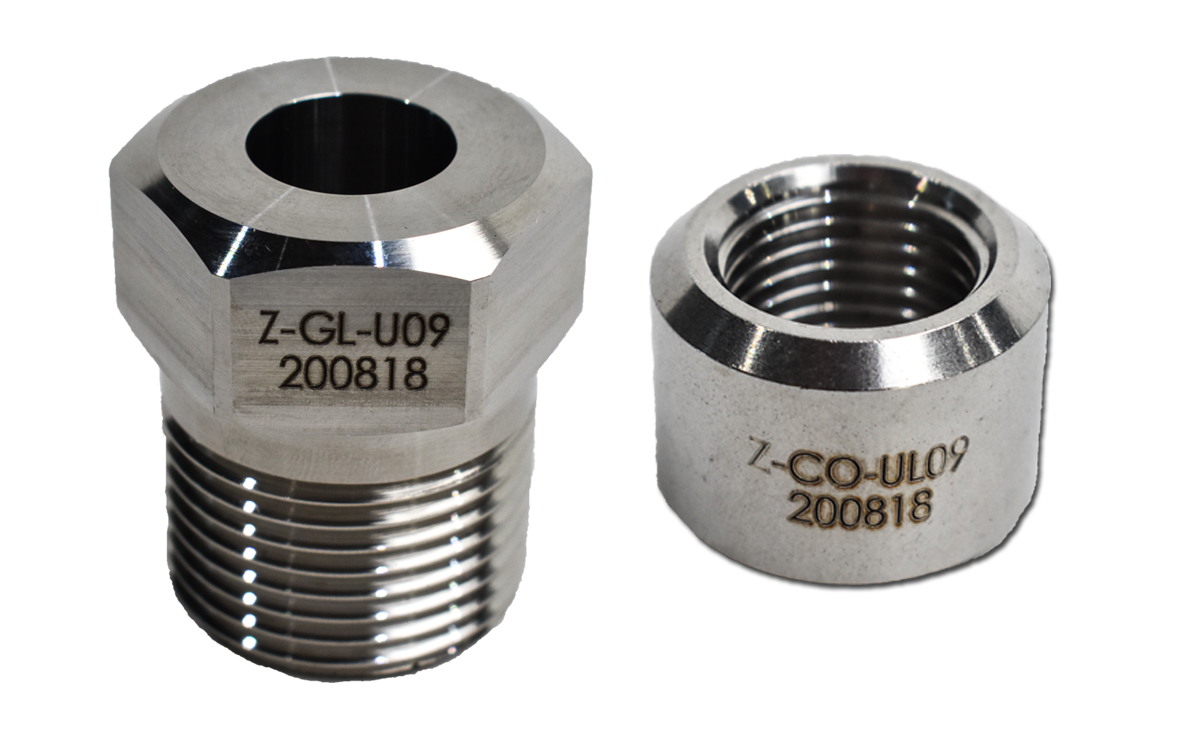

Z-GL-U09 Gland 4100 bar (60,000 psi) 1 1/8" UNF HP
Z-GL-U06 Gland 4100 bar (60,000 psi) 3/4" UNF HP
Z-GL-U04 Gland 4100 bar (60,000 psi) 9/16" UNF HP
Z-GL-M16 Gland 4100 bar (60,000 psi) M16 HP
Z-GL-M20 Gland 4100 bar (60,000 psi) M20 HP
Z-GL-M30 Gland 4100 bar (60,000 psi) M30 HP
Z-CO-UL09 Collar 4100 bar (60,000 psi) 9/16" HP
Z-CO-UL06 Collar 4100 bar (60,000 psi) 3/8" HP
Z-CO-UL04 Collar 4100 bar (60,000 psi) 1/4" HP
Z-CO-ML6 Collar 4100 bar (60,000 psi) M6 LH HP
Z-CO-ML10 Collar 4100 bar (60,000 psi) M10 LH HP
Z-CO-ML14 Collar 4100 bar (60,000 psi) M14 LH HP
