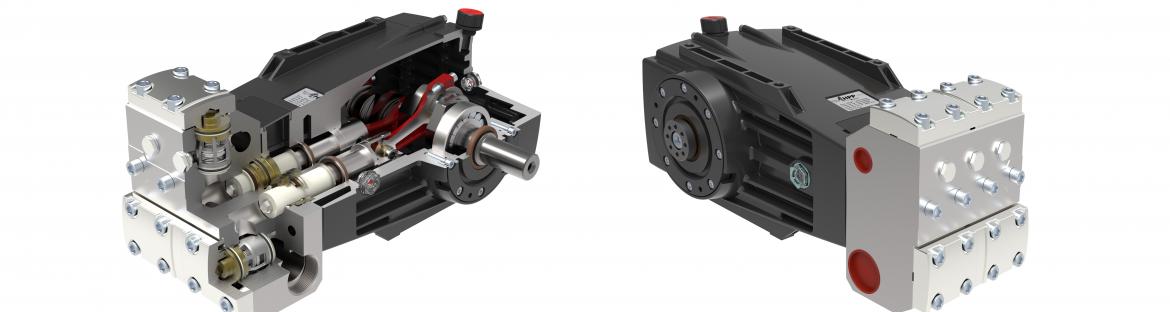

I-SERIES CLW High Pressure Pumps

I-SERIES CLW High Pressure Pumps

100 - 200 bar | 49 - 100 LPM | 16 - 19 kW

The CLW high pressure pumps are available in 100 to 200 bar, 49 to 100 liters per minute and 16 to 19 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES CLW pumps are relatively low in pressure, but with a large displacement and available in various pump speeds from 1000 to 1450 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES CLW High Pressure Pumps

100 - 200 bar | 49 - 100 LPM | 16 - 19 kW

The CLW high pressure pumps are available in 100 to 200 bar, 49 to 100 liters per minute and 16 to 19 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 100 - 200 bar
Flow: 49 - 100 LPM
Power: 16 - 19 kW
RPM: 1000/ 1150/ 1450 rpm
Montage: Horizontal
Weight: 33 kg
Pump head material: Nickel-plated brass
Toepassingen: Machinebouw, reiniging, verwijderen van graffiti, rioolreiniging,voedselindustrie, onderwater cavitatiereiniging en andere hogedruk toepassingen.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Double shaft end (optional)
  • Bell housing for hydraulic connection (optional)
  • Seal kit max. 85 degrees (optional)

Specifications

Pressure: 100 - 200 bar
Flow: 49 - 100 LPM
Power: 16 - 19 kW
RPM: 1000/ 1150/ 1450 rpm
Montage: Horizontal
Weight: 33 kg
Pump head material: Nickel-plated brass
Toepassingen: Machinebouw, reiniging, verwijderen van graffiti, rioolreiniging,voedselindustrie, onderwater cavitatiereiniging en andere hogedruk toepassingen.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Double shaft end (optional)
  • Bell housing for hydraulic connection (optional)
  • Seal kit max. 85 degrees (optional)

Overview available CLW pumps

Code Model RPM Flow Pressure Power Weight
6915 0013 CLW 49/200 1000 rpm 49 l/min 200 bar 19 kW 33 kg
6915 0014 CLW 66/140 1000 rpm 66 l/min 140 bar 18,5 kW 33 kg
6915 0015 CLW 70/130 1450 rpm 70 l/min 130 bar 17,5 kW 33 kg
6915 0012 CLW 80/100 1150 rpm 80 l/min 100 bar 16 kW 33 kg
6915 0011 CLW 100/100 1450 rpm 100 l/min 100 bar 19 kW 33 kg
