I-SERIES EFH High Pressure Pumps

I-SERIES EFH High Pressure Pumps

310 - 600 bar | 31,8 - 68,4 LPM | 37,4 - 44,9 kW

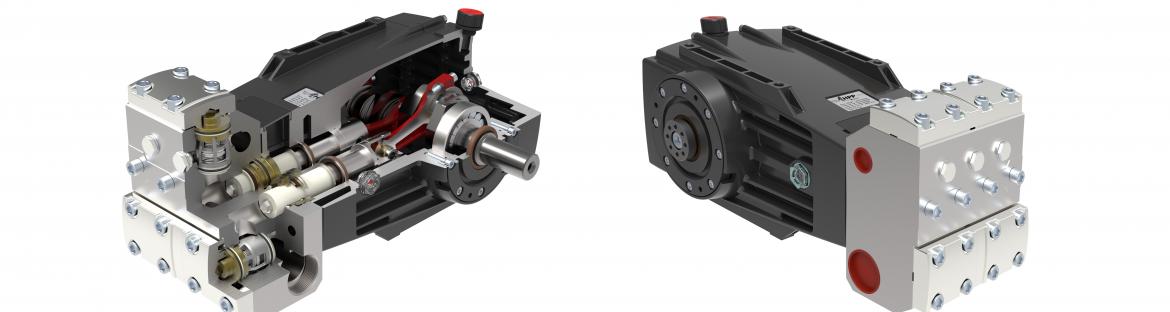

The EFH high pressure pumps are available in 310 to 600 bar, 31.8 to 68.4 liters per minute and 37.4 to 44.9 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES EFH pumps are relatively low in pressure with a large displacement and available in various pump speeds of 1000 rpm for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES EFH High Pressure Pumps

310 - 600 bar | 31,8 - 68,4 LPM | 37,4 - 44,9 kW

The EFH high pressure pumps are available in 310 to 600 bar, 31.8 to 68.4 liters per minute and 37.4 to 44.9 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 310 - 600 bar
Flow: 31,8 - 68,4 LPM
Power: 37,4 - 44,9 kW
RPM: 1000 rpm
Montage: Horizontal
Weight: 81 kg
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pully/ Drive shaft kit (optional)
  • Oil cooler (optional)
  • Reversed drive (optional)
  • Bell housing for hydraulic connection (optional)

Specifications

Pressure: 310 - 600 bar
Flow: 31,8 - 68,4 LPM
Power: 37,4 - 44,9 kW
RPM: 1000 rpm
Montage: Horizontal
Weight: 81 kg
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pully/ Drive shaft kit (optional)
  • Oil cooler (optional)
  • Reversed drive (optional)
  • Bell housing for hydraulic connection (optional)

Overview available EFH pumps

Code Model RPM Flow Pressure Power Weight
6924 0001 EFH 32/600 1000 rpm 31,8 l/min 600 bar 37,4 kW 81 kg
6924 0002 EFH 46/500 1000 rpm 45,8 l/min 500 bar 44,9 kW 81 kg
6924 0003 EFH 57/400 1000 rpm 56,5 l/min 400 bar 44,3 kW 81 kg
6924 0004 EFH 70/310 1000 rpm 68,4 l/min 310 bar 41,6 kW 81 kg
