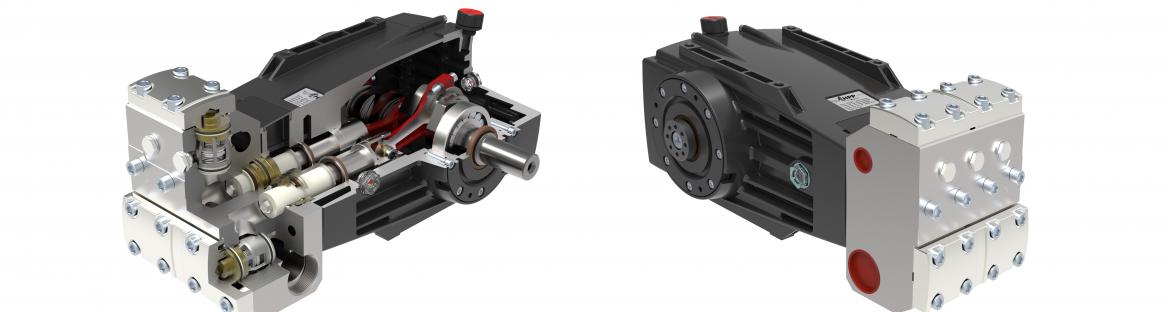

I-SERIES ELS High Pressure Pumps

I-SERIES ELS High Pressure Pumps

110 - 210 bar | 84 - 162 LPM | 36 - 41 kW

The ELS high pressure pumps are available in 110 to 210 bar, 84 to 162 liters per minute and 36 to 41 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES ELS pumps are relatively low in pressure with a large displacement and available in various pump speeds from 850 to 1000 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES ELS High Pressure Pumps

110 - 210 bar | 84 - 162 LPM | 36 - 41 kW

The ELS high pressure pumps are available in 110 to 210 bar, 84 to 162 liters per minute and 36 to 41 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 110 - 210 bar
Flow: 84 - 162 LPM
Power: 36 - 41 kW
RPM: 850 - 1000 rpm
Montage: Horizontal
Weight: 88 kg
Pump head material: Cast iron
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Bell housing for hydraulic connection (optional)
  • Pressure relief kit (optional)

Specifications

Pressure: 110 - 210 bar
Flow: 84 - 162 LPM
Power: 36 - 41 kW
RPM: 850 - 1000 rpm
Montage: Horizontal
Weight: 88 kg
Pump head material: Cast iron
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Bell housing for hydraulic connection (optional)
  • Pressure relief kit (optional)

Overview available ELS pumps

Code Model RPM Flow Pressure Power Weight
6905 0034 ELS 84/210 1000 rpm 84 l/min 210 bar 36 kW 88 kg
6905 0035 ELS 102/200 1000 rpm 102 l/min 200 bar 41 kW 88 kg
6905 0036 ELS 122/160 1000 rpm 122 l/min 160 bar 39 kW 88 kg
6906 0037 ELS 135/140 900 rpm 135 l/min 140 bar 38 kW 88 kg
6905 0038 ELS 150/130 1000 rpm 150 l/min 130 bar 39 kW 88 kg
6905 0039 ELS 162/110 850 rpm 162 l/min 110 bar 36 kW 88 kg
