I-SERIES ES - ESR Hogedrukpomp

I-SERIES ES - ESR Hogedrukpomp

140 - 250 bar | 106 - 220 LPM | 52 - 60 kW

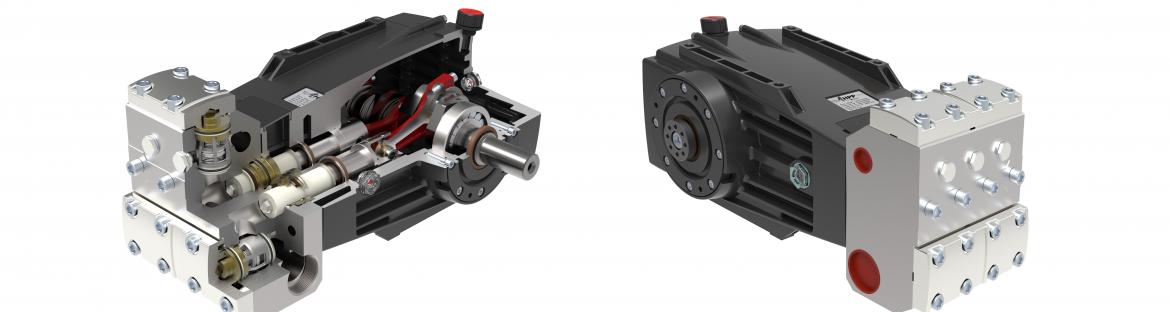

The ES / ESR high pressure pumps are available in 140 to 250 bar, 106 to 220 liters per minute and 52 to 60 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES ES / ESR pumps are relatively low in pressure with a large displacement and available in various pump speeds from 1200 to 2200 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES ES - ESR Hogedrukpomp

140 - 250 bar | 106 - 220 LPM | 52 - 60 kW

The ES / ESR high pressure pumps are available in 140 to 250 bar, 106 to 220 liters per minute and 52 to 60 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 140 - 250 bar
Flow: 106 - 220 LPM
Power: 52 - 60 kW
RPM: 1200 - 2200 rpm
Montage: Horizontal
Weight: ES: 92 / ESR: 107 kg
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Bell housing for hydraulic connection (optional)
  • Drive shaft kit (optional)
  • Seal kit max. 85 degrees (optional)

Specifications

Pressure: 140 - 250 bar
Flow: 106 - 220 LPM
Power: 52 - 60 kW
RPM: 1200 - 2200 rpm
Montage: Horizontal
Weight: ES: 92 / ESR: 107 kg
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pulse system (optional)
  • Bell housing for hydraulic connection (optional)
  • Drive shaft kit (optional)
  • Seal kit max. 85 degrees (optional)

Overview available ES / ESR pumps

Code Model RPM Flow Pressure Power Weight
6920 0001 ES 106/250 1200 rpm 106 l/min 250 bar 52 kW 92 kg
6920 0012 ESR 106/250 1500 rpm 106 l/min 250 bar 52 kW 107 kg
6920 0013 ESR 106/250 1800 rpm 106 l/min 250 bar 52 kW 107 kg
6920 0014 ESR 106/250 2200 rpm 106 l/min 250 bar 52 kW 107 kg
6920 0006 ES 133/210 1200 rpm 133 l/min 210 bar 55 kW 92 kg
6920 0015 ESR 133/210 1500 rpm 133 l/min 210 bar 55 kW 107 kg
6920 0016 ESR 133/210 1800 rpm 133 l/min 210 bar 55 kW 107 kg
6920 0017 ESR 133/210 2200 rpm 133 l/min 210 bar 55 kW 107 kg
6920 0003 ES 153/200 1200 rpm 153 l/min 200 bar 60 kW 92 kg
6920 0018 ESR 153/200 1500 rpm 153 l/min 200 bar 60 kW 107 kg
6920 0019 ESR 153/200 1800 rpm 153 l/min 200 bar 60 kW 107 kg
6920 0020 ESR 153/200 2200 rpm 153 l/min 200 bar 60 kW 107 kg
6920 0002 ES 185/160 1200 rpm 185 l/min 160 bar 58 kW 92 kg
6920 0021 ESR 185/160 1500 rpm 185 l/min 160 bar 58 kW 107 kg
6920 0022 ESR 185/160 1800 rpm 185 l/min 160 bar 58 kW 107 kg
6920 0023 ESR 185/160 2200 rpm 185 l/min 160 bar 58 kW 107 kg
6920 0007 ES 220/140 1200 rpm 220 l/min 140 bar 60 kW 92 kg
6920 0024 ESR 220/140 1500 rpm 220 l/min 140 bar 60 kW 107 kg
6920 0025 ESR 220/140 1800 rpm 220 l/min 140 bar 60 kW 107 kg
6920 0026 ESR 220/140 2200 rpm 220 l/min 140 bar 60 kW 107 kg
