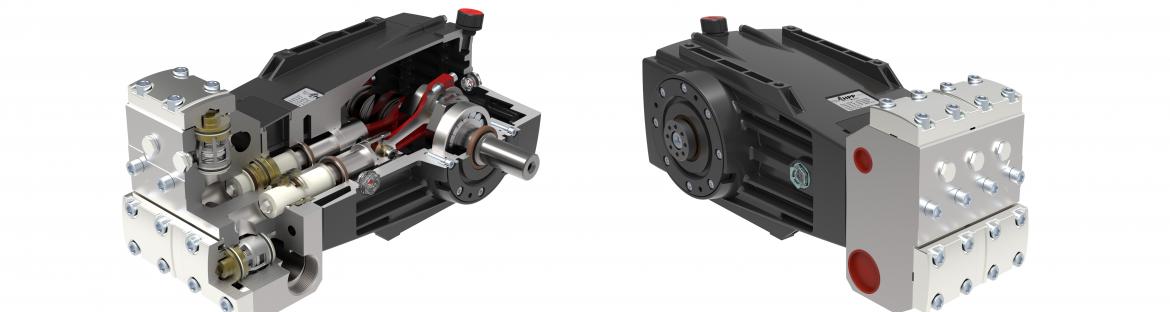

I-SERIES ET High Pressure Pumps

I-SERIES ET High Pressure Pumps

110 - 250 bar | 57 - 144 LPM | 28 - 31 kW

The ET high pressure pumps are available in 110 to 250 bar, 57 to 144 liters per minute and 28 to 31 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES ET pumps are relatively low in pressure with a large displacement and available in various pump speeds from 1450 to 1750 rpm. This compact pump can be placed anywhere with ease and takes up little space. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES ET High Pressure Pumps

110 - 250 bar | 57 - 144 LPM | 28 - 31 kW

The ET high pressure pumps are available in 110 to 250 bar, 57 to 144 liters per minute and 28 to 31 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 110 - 250 bar
Flow: 57 - 144 LPM
Power: 28 - 31 kW
RPM: 1450 - 1750 rpm
Montage: Horizontal
Weight: ES: 40 kg
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Easy to use left and right
  • stainless steel high pressure valves
  • Nickel-plated brass pump head
  • Suitable for hydraulic drive

Specifications

Pressure: 110 - 250 bar
Flow: 57 - 144 LPM
Power: 28 - 31 kW
RPM: 1450 - 1750 rpm
Montage: Horizontal
Weight: ES: 40 kg
Pump head material: Stainless steel
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Easy to use left and right
  • stainless steel high pressure valves
  • Nickel-plated brass pump head
  • Suitable for hydraulic drive

Overview available ET pumps

Model RPM Flow Pressure Power Weight
ET 55/250 1450 rpm 57,7 l/min 250 bar 28,2 kW 40 kg
ET 70/200 1750 rpm 69,6 l/min 200 bar 27,3 kW 40 kg
ET 72/200 1450 rpm 72,3 l/min 200 bar 28,3 kW 40 kg
ET 87/125 1750 rpm 87,3 l/min 175 bar 29,9 kW 40 kg
ET 83/125 1450 rpm 83,0 l/min 175 bar 28,5 kW 40 kg
ET 100/150 1750 rpm 100,2 l/min 150 bar 29,4 kW 40 kg
ET 100/150 1450 rpm 100,5 l/min 150 bar 29,5 kW 40 kg
ET 120/120 1750 rpm 121,2 l/min 120 bar 28,5 kW 40 kg
ET 120/120 1450 rpm 119,5 l/min 120 bar 28,1 kW 40 kg
ET 144/110 1750 rpm 144,3 l/min 110 bar 31,1 kW 40 kg
