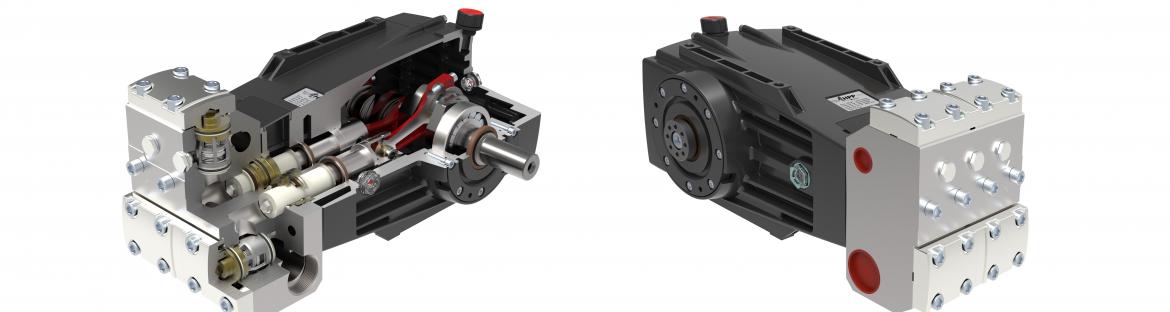

I-SERIES SL - SLR High Pressure Pumps

I-SERIES SL - SLR High Pressure Pumps

130 - 300 bar | 135 - 316 LPM | 81 kW

The SL / SLR high pressure pumps are available in 130 to 300 bar, 135 to 316 liters per minute and 81 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications. These I-SERIES SL - SLR pumps are relatively low in pressure with a large displacement and available in various pump speeds from 750 to 2200 rpm with a traditional valve mechanism for horizontal mounting. The excellent quality and reliability guarantee very high efficiency and very low operating costs.

Download the brochure for more information and technical specifications for the different models.

Download Brochure

I-SERIES SL - SLR High Pressure Pumps

130 - 300 bar | 135 - 316 LPM | 81 kW

The SL / SLR high pressure pumps are available in 130 to 300 bar, 135 to 316 liters per minute and 81 kW for use in the construction, food and cleaning industry, sewer cleaning, machine building and other applications.

Specifications

Pressure: 130 - 300 bar
Flow: 135 - 316 LPM
Power: 81 kW
RPM: 750 - 2200 rpm
Montage: Horizontal
Weight: SL: 235 / SLR: 270 kg
Pump head material: Cast iron
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pressure relief kit (optional)
  • Pully/ Drive shaft kit (optional)
  • Bell housing for hydraulic connection (optional)
  • Oil cooler (optional)
  • Reversed drive (optional)

Specifications

Pressure: 130 - 300 bar
Flow: 135 - 316 LPM
Power: 81 kW
RPM: 750 - 2200 rpm
Montage: Horizontal
Weight: SL: 235 / SLR: 270 kg
Pump head material: Cast iron
Applications: Machine construction, cleaning, graffiti removal, sewer cleaning, food industry, underwater cavitation cleaning and other high pressure applications.

Features

  • Splash lubrication
  • Ceramic plungers
  • Connection kit (optional)
  • Pressure relief kit (optional)
  • Pully/ Drive shaft kit (optional)
  • Bell housing for hydraulic connection (optional)
  • Oil cooler (optional)
  • Reversed drive (optional)

Overview available SL / SLR pumps

Code Model RPM Flow Pressure Power Weight
6909 0001 SL 135/300 750 rpm 135 l/min 300 bar 81 kW 235 kg
6909 0006 SLR 135/300 1500 rpm 135 l/min 300 bar 81 kW 270 kg
6909 0011 SLR 135/300 1800 rpm 135 l/min 300 bar 81 kW 270 kg
6909 0035 SLR 135/300 2200 rpm 135 l/min 300 bar 81 kW 270 kg
6909 0002 SL 167/250 750 rpm 167 l/min 250 bar 81 kW 235 kg
6909 0007 SLR 167/250 1500 rpm 167 l/min 250 bar 81 kW 270 kg
6909 0012 SLR 167/250 1800 rpm 167 l/min 250 bar 81 kW 270 kg
6909 0036 SLR 167/250 2200 rpm 167 l/min 250 bar 81 kW 270 kg
6909 0003 SL 212/200 750 rpm 212 l/min 200 bar 81 kW 235 kg
6909 0008 SLR 212/200 1500 rpm 212 l/min 200 bar 81 kW 270 kg
6909 0013 SLR 212/200 1800 rpm 212 l/min 200 bar 81 kW 270 kg
6909 0037 SLR 212/200 2200 rpm 212 l/min 200 bar 81 kW 270 kg
6909 0004 SL 263/160 750 rpm 263 l/min 160 bar 81 kW 235 kg
6909 0009 SLR 263/160 1500 rpm 263 l/min 160 bar 81 kW 270 kg
6909 0014 SLR 263/160 1800 rpm 263 l/min 160 bar 81 kW 270 kg
6909 0038 SLR 263/160 2200 rpm 263 l/min 160 bar 81 kW 270 kg
6909 0005 SL 316/130 750 rpm 316 l/min 130 bar 81 kW 235 kg
6909 0010 SL 316/130 1500 rpm 316 l/min 130 bar 81 kW 270 kg
6909 0015 SL 316/130 1800 rpm 316 l/min 130 bar 81 kW 270 kg
6909 0039 SL 316/130 2200 rpm 316 l/min 130 bar 81 kW 270 kg
