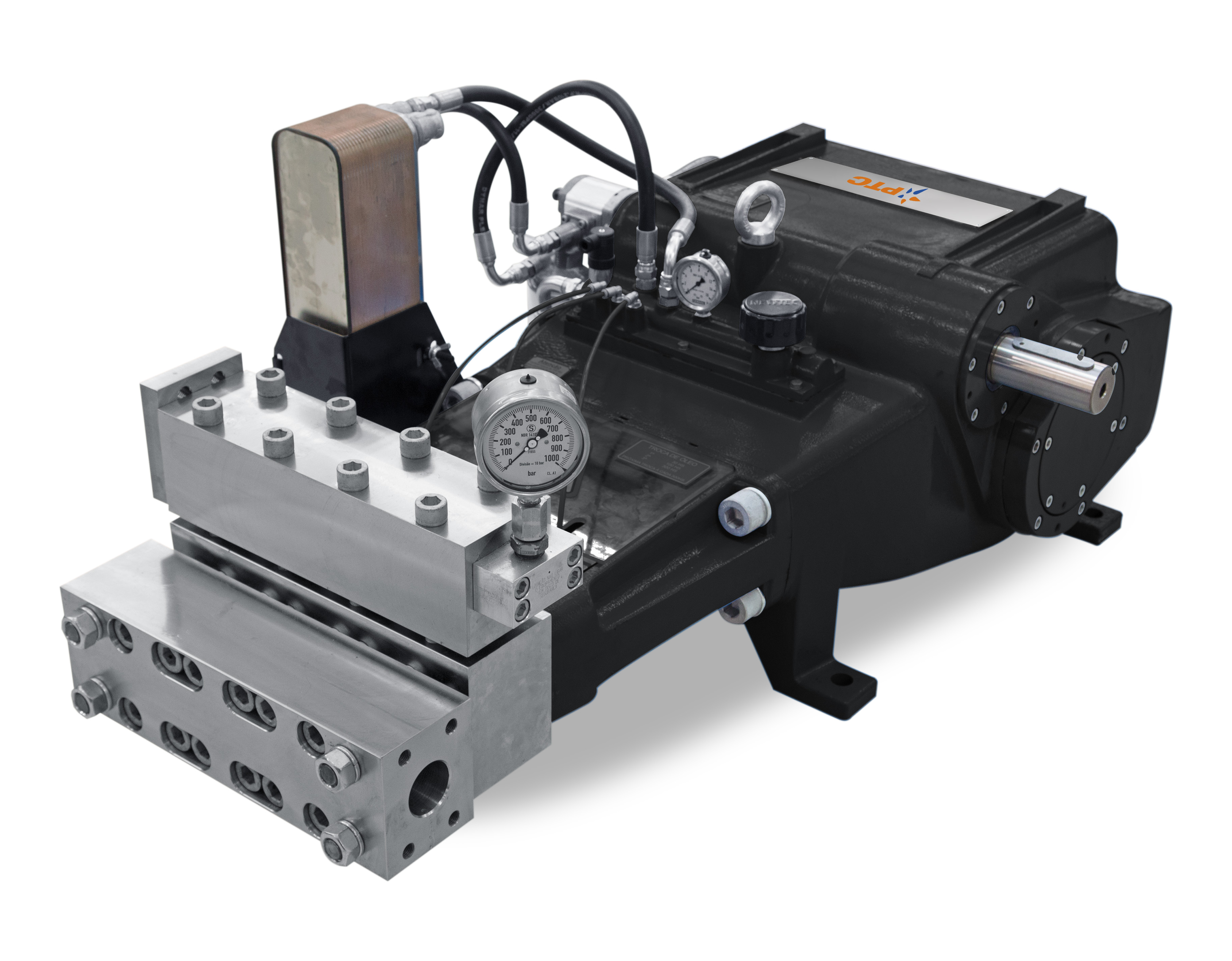

P-SERIES P-100 SAP-L High Volume High Pressure Pumps

P-SERIES P-100 SAP-L High Volume High Pressure Pumps

115 - 270 bar | 151,2 - 374,6 LPM | 74,4 - 79,8 kW

The PTC P-100 SAP-L pumps are developed for high volumes and available in ranges from 115 to 270 bar, 151.2 to 374.6 LPM and 74.4 to 79.8 kW for sewer cleaning, road renovation, concrete bridges and viaducts, pillars, scaffolding and walls, tank cleaning and other high flow applications. The P-100 SAP-L high pressure pumps are equipped with a conventional valve mechanism for horizontal mounting (1500 / 1800RPM).

Download the brochure for more information and technical specifications for the different models.

 Download Brochure

P-SERIES P-100 SAP-L High Volume High Pressure Pumps

115 - 270 bar | 151,2 - 374,6 LPM | 74,4 - 79,8 kW

The PTC P-100 SAP-L pumps are developed for high volumes and available in ranges from 115 to 270 bar, 151.2 to 374.6 LPM and 74.4 to 79.8 kW for sewer cleaning, road renovation, concrete bridges and viaducts, pillars, scaffolding and walls, tank cleaning and other high flow applications.

Specifications

Pressure: 115 - 270 bar
Flow: 151,2 - 374,6 LPM
Power: 74,4 - 79,8 kW
RPM: 1500/1800 RPM
Montage: Horizontal
Applications: Sewer cleaning, renovation of roads, concrete bridges and viaducts, pillars, jetties and walls, tank cleaning and other high flow applications

Features

  • Stainless steel pump head
  • Tungsten carbide plunger
  • Forced lubrication
  • Long lifespan

Specifications

Pressure: 115 - 270 bar
Flow: 151,2 - 374,6 LPM
Power: 74,4 - 79,8 kW
RPM: 1500/1800 RPM
Montage: Horizontal
Applications: Sewer cleaning, renovation of roads, concrete bridges and viaducts, pillars, jetties and walls, tank cleaning and other high flow applications

Features

  • Stainless steel pump head
  • Tungsten carbide plunger
  • Forced lubrication
  • Long lifespan

Overview available P-100 SAP-L pumps

H-Model/Code RPM Flow Pressure Power Weight
P231154H31400 1500 rpm 155,9 l/min 270 bar 78 kW 400 kg
P231164H31400 1800 rpm 151,2 l/min 270 bar 75,6 kW 400 kg
P231154H31450 1500 rpm 197,3 l/min 215 bar 78,6 kW 400 kg
P231164H31450 1800 rpm 191,4 l/min 215 bar 76,2 kW 400 kg
P231154H31500 1500 rpm 243,6 l/min 170 bar 76,2 kW 400 kg
P231164H31500 1800 rpm 236,3 l/min 170 bar 74,4 kW 400 kg
P231154H31550 1500 rpm 294,8 l/min 145 bar 79,2 kW 400 kg
P231164H31550 1800 rpm 285,9 l/min 145 bar 76,8 kW 400 kg
P231154H31620 1500 rpm 374,6 l/min 115 bar 79,8 kW 400 kg
P231164H31620 1800 rpm 363,3 l/min 115 bar 77,4 kW 400 kg
