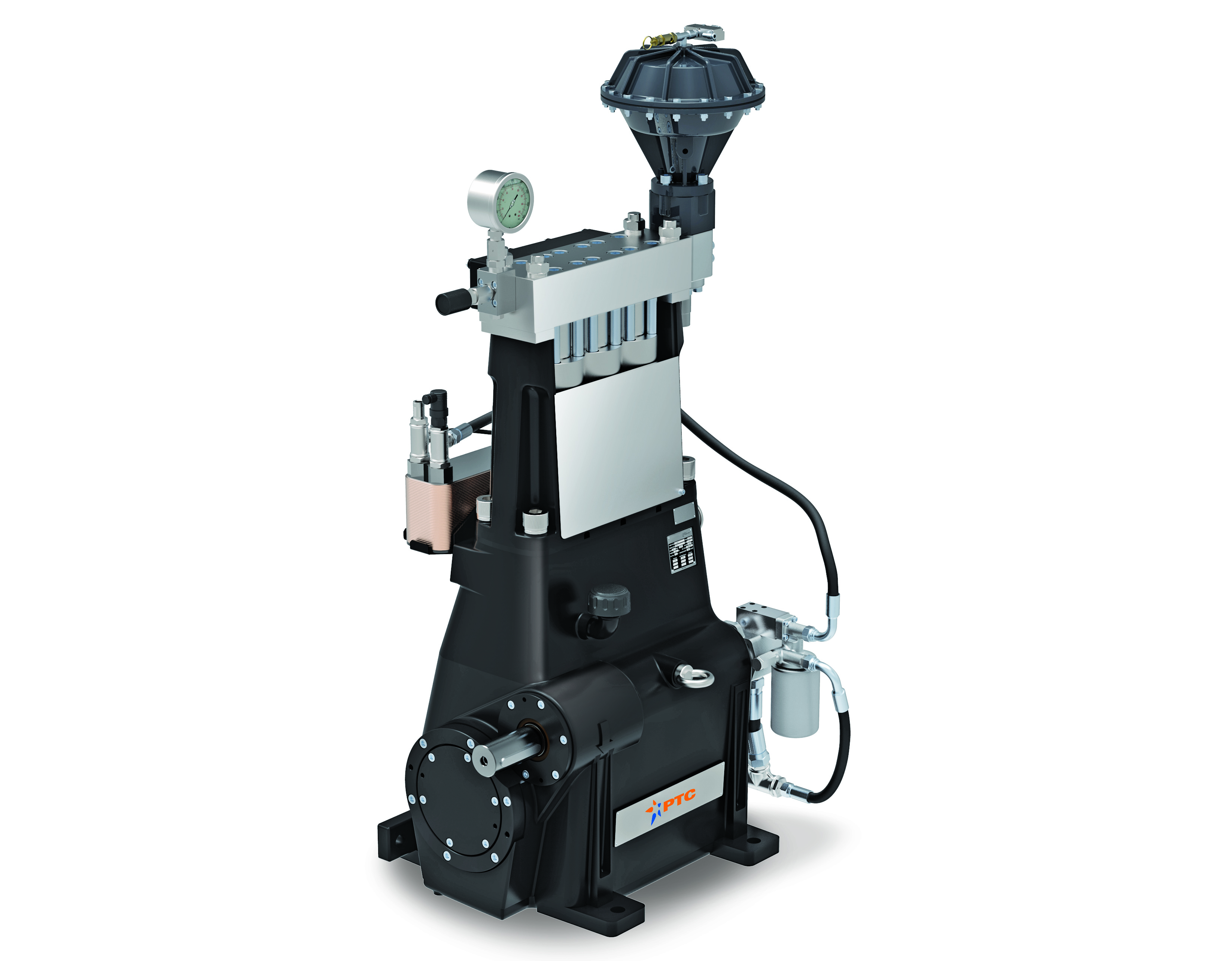

P-SERIES P-150 SAP High Pressure Pump

P-SERIES P-150 SAP High Pressure Pump

400 - 1400 bar | 45,7 - 155,9 LPM | 112 - 124,7 kW

The PTC P-150SAP Heavy Duty pumps are equipped with the INTELLIVALVE “cartridge” valve mechanism and are available in ranges from 400 to 1400 bar, 45.7 to 155.9 LPM and 112 to 124.7 kW for concrete renovation and hydrodemolition, tank and ship cleaning and other hot and cold water applications. The P-150 SAP high pressure pumps can be mounted both horizontally and vertically (1500/1800 RPM).

  • Pump head with INTELLIVALVE cartridge technology
  • Increased component life
  • For horizontal and vertical applications

Download the brochure for more information and technical specifications for the different models.

 Download Brochure

P-SERIES P-150 SAP High Pressure Pump

400 - 1400 bar | 45,7 - 155,9 LPM | 112 - 124,7 kW

De PTC P-150SAP Heavy Duty pompen zijn uitgevoerd met het INTELLIVALVE “cartridge” klepmechanisme en leverbaar in ranges van 400 tot 1400 bar, 45,7 tot 155,9 LPM en 112 tot 124,7 kW voor betonrenovatie en hydrodemolition, tank- en scheepsreiniging en andere toepassingen met warm en koud water.

Specifications

Pressure: 400 - 1400 bar
Flow: 45,7 - 155,9 LPM
Power: 112 - 124,7 kW
RPM: 1500/ 1800 RPM
Use: Warm and cold water
Montage: Horizontal and vertical
Applications: Concrete renovation, hydrodemolition, tank and ship cleaning, etc.

Features

  • Intellivalve cartridge technology
  • Stainless steal pump head
  • Tungsten carbide plunger
  • Forced lubrication
  • Long lifespan

Specifications

Pressure: 400 - 1400 bar
Flow: 45,7 - 155,9 LPM
Power: 112 - 124,7 kW
RPM: 1500/ 1800 RPM
Use: Warm and cold water
Montage: Horizontal and vertical
Applications: Concrete renovation, hydrodemolition, tank and ship cleaning, etc.

Features

  • Intellivalve cartridge technology
  • Stainless steal pump head
  • Tungsten carbide plunger
  • Forced lubrication
  • Long lifespan

Overview available P-150 SAP pumps

V-Model/Code H-Model/Code RPM Flow Pressure Power Weight
P231552V34220 P231552H34220 1500 rpm 47,2 l/min 1400 bar 122,3 kW 400 kg
P231552V34220 P231552H34220 1800 rpm 45,7l/min 1400 bar 118,6 kW 400 kg
P231552V34240 P231552H34240 1500 rpm 56,1 l/min 1200 bar 124,7 kW 400 kg
P231552V34240 P231552H34240 1800 rpm 54,4 l/min 1200 bar 121 kW 400 kg
P231552V34260 P231552H34260 1500 rpm 65,9 l/min 1000 bar 122 kW 400 kg
P231552V34260 P231552H34260 1800 rpm 63,9 l/min 1000 bar 118,3 kW 400 kg
P231552V34280 P231552H34280 1500 rpm 76,4 l/min 830 bar 117,4 kW 400 kg
P231552V34280 P231552H34280 1800 rpm 74,1 l/min 830 bar 113,9 kW 400 kg
P231552V34300 P231552H34300 1500 rpm 87,7 l/min 750 bar 121,8 kW 400 kg
P231552V34300 P231552H34300 1800 rpm 85,1 l/min 750 bar 118,1 kW 400 kg
P231552V34320 P231552H34320 1500 rpm 99,8 l/min 640 bar 118,3 kW 400 kg
P231552V34320 P231552H34320 1800 rpm 96,8 l/min 640 bar 114,7 kW 400 kg
P231552V34350 P231552H34350 1500 rpm 119,4 l/min 560 bar 123,8 kW 400 kg
P231552V34350 P231552H34350 1800 rpm 115,8 l/min 560 bar 120,1 kW 400 kg
P231552V34400 P231552H34400 1500 rpm 155,9 l/min 400 bar 115,5 kW 400 kg
P231552V34400 P231552H34400 1800 rpm 151,2 l/min 400 bar 112 kW 400 kg
