Electric High Pressure Compact Unit

Electric High Pressure Compact Unit

130 - 1000 bar | 15 - 42 LPM |15 - 37 kW

These affordable high-pressure units are very compact and solid, specially designed for industrial cleaners.

Available with a power up to 37 kW and a maximum pressure of 1000 bar, with a flow range of 15 - 42 LPM.

The excellent quality and reliability of these units guarantee a very high efficiency and low operating costs.



Contact us now for more information! These units are available for rent!

 Download Brochure

Electric High Pressure Compact Unit

130 - 1000 bar | 15 - 42 LPM |15 - 37 kW

The compact high-pressure electrical units are low noise and economical. Available with power up to 37 kW, maximum pressure up to 1000 bar and a flow range of 15 - 42 LPM.

Pro-Jetting - Electric High Pressure Units Front - k extreme

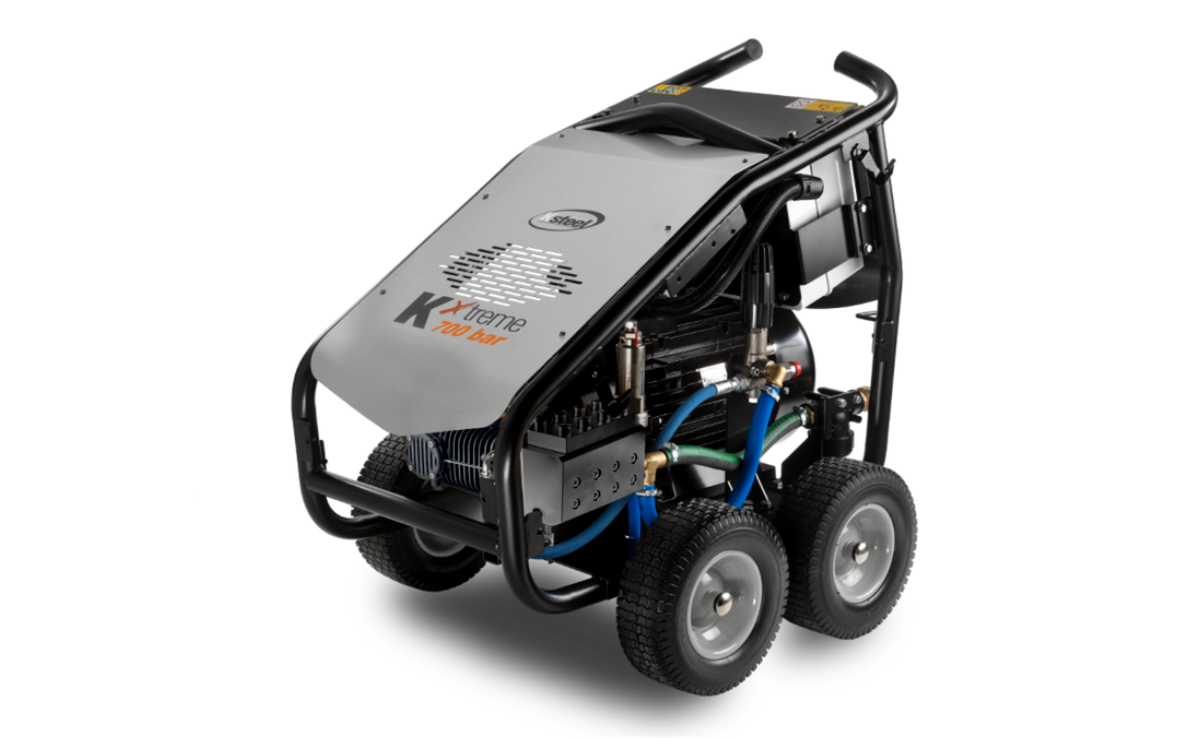

Pro-Jetting - Electric High Pressure Units Side - K- Xtreme - 700 bar
Pro-Jetting - Electric High Pressure Units Side - HDE550-30
Pro-Jetting - Electric High Pressure Units
Pro-Jetting - Electric High Pressure Units

Specifications

Pressure: 130 - 1000 bar
Flow: 15 - 42 LPM
Power: 10 - 37 kW
Drive: Electric

Features

  • Compact and solid design
  • Excellent quality
  • Low maintenance
  • SIR certified
  • Customization possible

Specifications

Pressure: 130 - 1000 bar
Flow: 15 - 42 LPM
Power: 10 - 37 kW
Drive: Electric

Features

  • Compact and solid design
  • Excellent quality
  • Low maintenance
  • SIR certified
  • Customization possible

Electric High Pressure Compact Unit

Model Flow Pressure Power Weight (L x W x H) cm
HDE160_33 33 LPM 160 bar 10 kW 161 kg 90 x 75 x 95
HDE260_21 21 LPM 260 bar 10 kW 161 kg 90 x 75 x95
HDE130_42 42 LPM 130 bar 12 kW 163 kg 90 x 75 x 95
HDE250_33 33 LPM 250 bar 15 kW 175 kg 100 x 75 x 85
HDE360_18 18 LPM 360 bar 12 kW 163 kg 90 x 75 x 95
HDE360_21 21 LPM 360 bar 15 kW 175 kg 100 x 75 x 85
HDE500_15 15 LPM 500 bar 15 kW 175 kg 100 x 75 x 95
HDE520_15 15 LPM 520 bar 15 kW 175 kg 100 x 75 x 85
HDE200_42 42 LPM 200 bar 18,5 kW 185 kg 100 x 75 x 85
HDE450_21 21 LPM 450 bar 18,5 kW 185 kg 100 x 75 x 85
HDE500_21 21 LPM 500 bar 18,5 kW 195 kg 100 x 75 x 95
HDE520_18 18 LPM 520 bar 18,5 kW 185 kg 100 x 75 x 85
HDE300_30 30 LPM 300 bar 22,5 kW 185 kg 100 x 75 x 95
HDE520_21 21 LPM 520 bar 23 kW 200 kg 100 x 75 x 85
HDE730_15 15 LPM 730 bar 23 kW 200 kg 100 x 75 x 85
HDE500_30 30 LPM 500 bar 30 kW 280 kg 137 x 85 x 103
HDE800_20 20 LPM 800 bar 30 Kw 450 kg 145 x 90 x 105
HDE1000_15 15 LPM 1000 bar 30 kW 450 kg 145 x 90 x 105
HDE500_38 38 LPM 500 bar 37 kW 550 kg 145 x 90 x 105
HDE1000_19 19 LPM 1000 bar 37 kW 550 kg 145 x 90 x 105

Diesel High Pressure Compact Units

1500 bar | 13 - 30 LPM | 7,4 - 39,5 kW

Prefer a diesel engine driven high pressure unit? These units meet the latest emission requirements and are available as a convenient cart with a power up to 39.5 kW, a pressure of 160 - 1500 bar and a flow range of 13 - 30 LPM.
> Read more

Petrol High Pressure Compact Units

200 - 730 bar | 13 - 36 LPM | | 9,6 - 31,1 kW

No 3-phase electrical connection, but still an affordable high-pressure unit? The petrol engine driven high-pressure units are available with a power up to 31 kW, a maximum pressure of 730 bar and a flow range of 13 - 36 LPM.
> Read more

High Pressure Units Elektric, Diesel and Petrol

100 - 2800 bar | 10 - 1146 LPM | 10 - 440 kW

Looking for more power? View our range of Petrol, Electric or Diesel driven high pressure units. These can be built into a vehicle, but also as a trailer, DNV container or low noise canopy.
> Read more
