Petrol High Pressure Compact Units

Petrol High Pressure Compact Units

200 - 700 bar | 13-36 LPM | 9,6 - 23,1 kW

These functionally equipped high-pressure units with patrol engine are sturdy and affordable!

Available with a power up to 23,1 kW, 200 - 700 bar, with a flow range of 13 - 36 LPM.

The excellent quality and reliability of these units guarantee a high efficiency and low operating costs.



Contact us now for more information! These units are available for rent!

 Download Brochure

Petrol High Pressure Compact Units

200 - 700 bar | 13-36 LPM | 9,6 - 23,1 kW

These functionally equipped high-pressure units with patrol engine are robust and affordable! Available with a power up to 23,1 kW, 200 - 700 bar, with a flow range of 13 - 36 LPM.

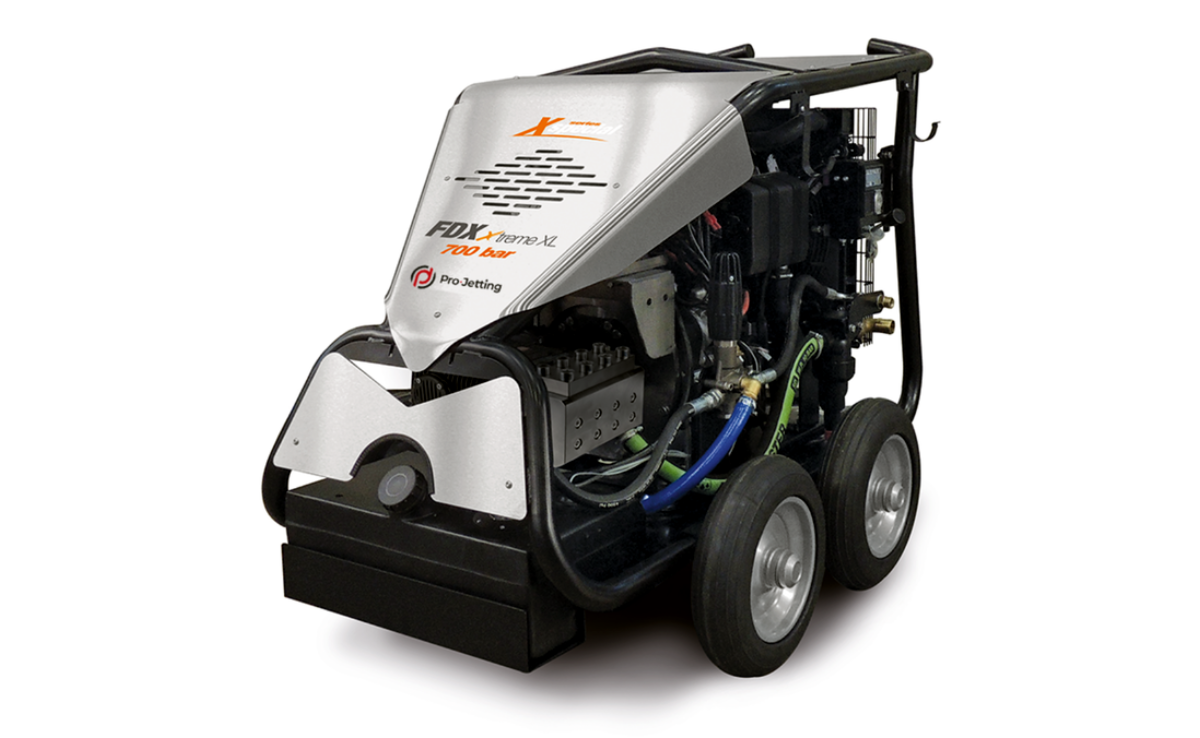

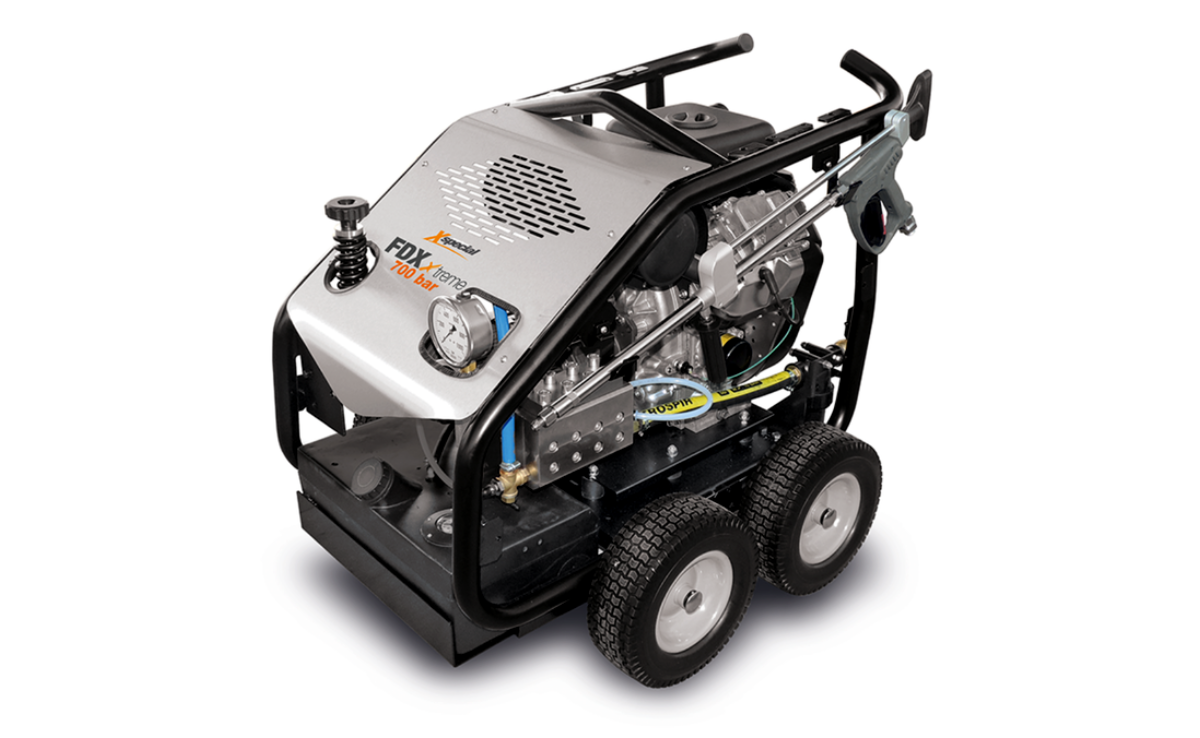

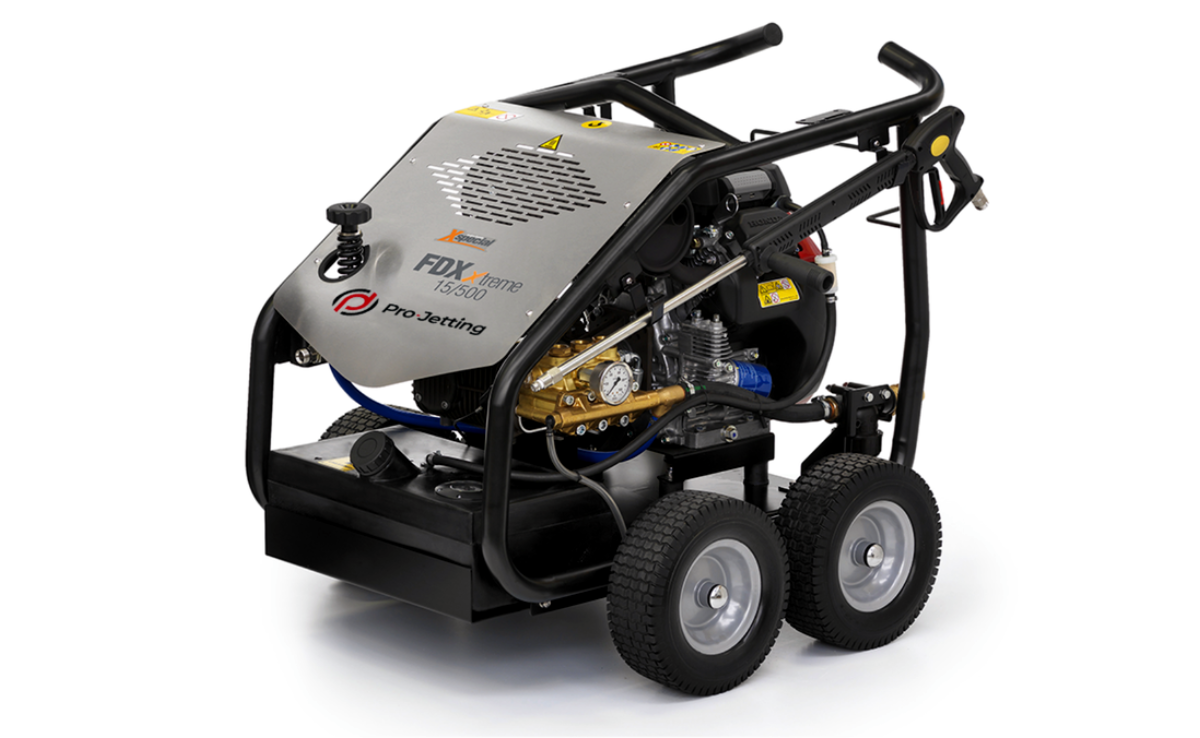

Petrol High pressure units fdx- xtreme
Petrol High pressure units fdx- xtreme
Petrol High pressure units fdx- xtreme
Petrol High pressure units fdx- xtreme
Petrol High pressure units fdx- xtreme

Specifications

Pressure: 200 - 700 bar
Flow: 13 - 36 LPM
Power: 9,6 - 23,1 kW
Drive: Petrol

Features

  • Compact and solid design
  • Excellent quality
  • Low maintenance
  • SIR certified
  • Customization possible

Specifications

Pressure: 200 - 700 bar
Flow: 13 - 36 LPM
Power: 9,6 - 23,1 kW
Drive: Petrol

Features

  • Compact and solid design
  • Excellent quality
  • Low maintenance
  • SIR certified
  • Customization possible

Petrol High Pressure Compact Units

Model Flow Druk Vermogen Gewicht (L x W x H) cm
HDMP200_21 21 LPM 200 bar 9,6 kW 72 kg 95 x 68 x 95 cm
HDMP220_18 18 LPM 220 bar 9,6 kW 72 kg 95 x 68 x 95 cm
HDMP260_16 16 LPM 260 bar 9,6 kW 72 kg 95 x 68 x 95 cm
HDMP300_15 15 LPM 300 bar 9,6 kW 72 kg 95 x 68 x 95 cm
HDMP360_18 18 LPM 360 bar 13,4 kW 150 kg 100 x 82 x 85 cm
HDMP230_36 36 LPM 230 bar 16,4 kW 150 kg 100 x 82 x 85 cm
HDMP280_30 30 LPM 280 bar 16,4 kW 150 kg 100 x 82 x 85 cm
HDMP360_21 21 LPM 360 bar 16,4 kW 150 kg 100 x 82 x 85 cm
HDMP415_18 18 LPM 450 bar 16,4 kW 150 kg 100 x 82 x 85 cm
HDMP520_15 15 LPM 520 bar 16,4 kW 150 kg 100 x 82 x 85 cm
HDMP500_21 21 LPM 500 bar 23 kW 190 kg 100 x 82 x 85 cm
HDMP700_15 15 LPM 700 bar 23,1 kW 150 kg 100 x 82 x 85 cm
HDMP350_30 30 LPM 350 bar 26 kW 260 kg 137 x 85 x 102 cm
HDMP500_25 25 LPM 500 bar 26 kW 260 kg 137 x 85 x 102 cm
HDMP520_21 21 LPM 520 bar 32,1 kW 150 kg 100 x 82 x 85 cm

Electric High Pressure Compact Units

1000 bar | 15 – 42 LPM | 15 - 37 kW

This compact elektric high pressure units are quiet and affordable. Available with a maximum power of 37 kW, maximum pressure of 1000 bar and a flow of 15-42 LPM.
> Read more

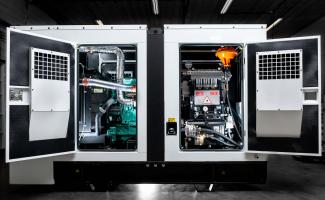

Diesel High Pressure Compact Units

1500 bar | 13 - 30 LPM | 7,4 - 39,5 kW

Prefer a diesel engine driven high pressure unit? These units meet the latest emission requirements and are available as a convenient cart with a power up to 39.5 kW, a pressure of 160 - 1500 bar and a flow range of 13 - 30 LPM.
> Read more

High Pressure units, Electric, Diesel and Patrol

100 - 2800 bar | 10 - 1146 LPM | 10 - 440 kW

Looking for more power? View our range of Petrol, Electric or Diesel driven high pressure units. These can be built into a vehicle, but also as a trailer, DNV container or low noise canopy.
> Read more
