High Pressure PTO Units

100 - 2800 bar | 10 - 480 LPM | 10 - 169 kW

The high-pressure pump can be driven by the engine of a vehicle by the power take-off to save weight and costs. Moreover, the vehicle meets the most recent emission requirements!

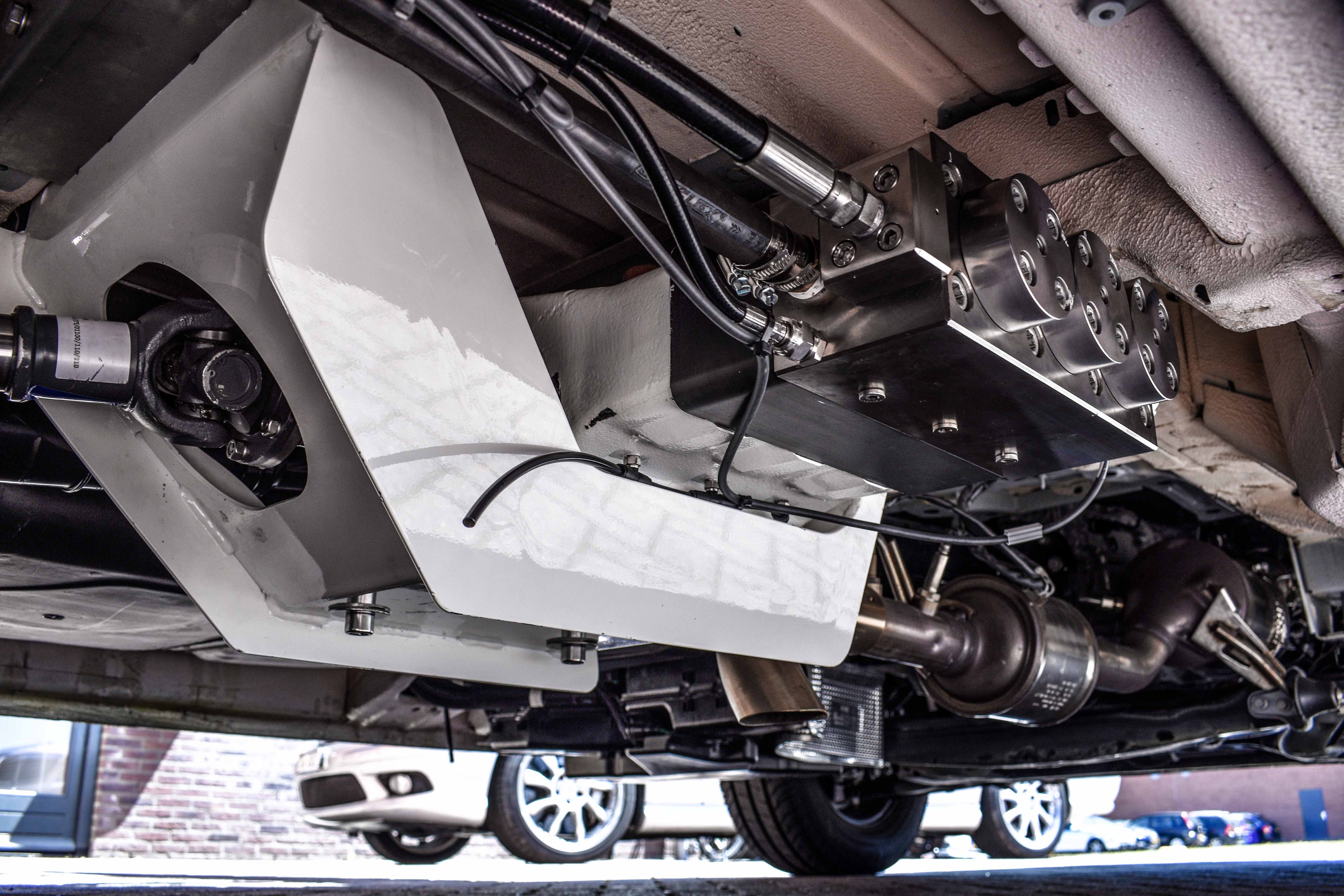

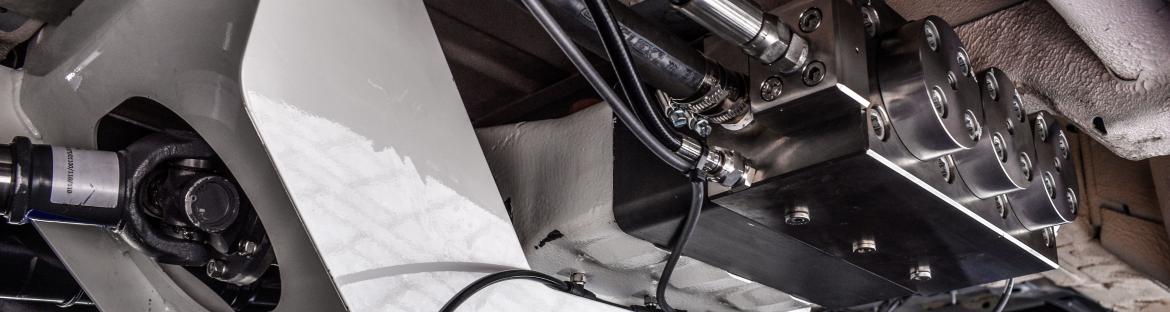

Depending on the type of vehicle and gearbox, a pump of up to 37 kW can be built by the PTO gear or transfer box under a MAN TGE, Volkswagen Crafter, Mercedes-Benz Sprinter, Yveco Daily or other company vehicle. With a gearbox or flywheel PTO, a truck can be equipped with a high-pressure pump up to 169 kW, with a maximum operating pressure of 2800 bar (40,000 psi) or flow rate of 480 LPM (126.8 gpm).

By communicating with the vehicle with software, our engineers ensure that the engine speed is automatically adjusted to the desired pressure and water yield to also save fuel.

The advantages at a glance:

- Weight, space and cost saving
- Meets the latest environmental requirements
- Several things can be driven simultaneously by means of a hydraulic pump

All tested in-house and SIR certified to meet the most stringent requirements for reliability and performance.

Inquire now about the (customized) options for your job!
