NX179 High Pressure Hose for High Temperatures
PTFE slangen

NX179 High Pressure Hose for High Temperatures

3/8" (DN3) - 3/4" (DN20)

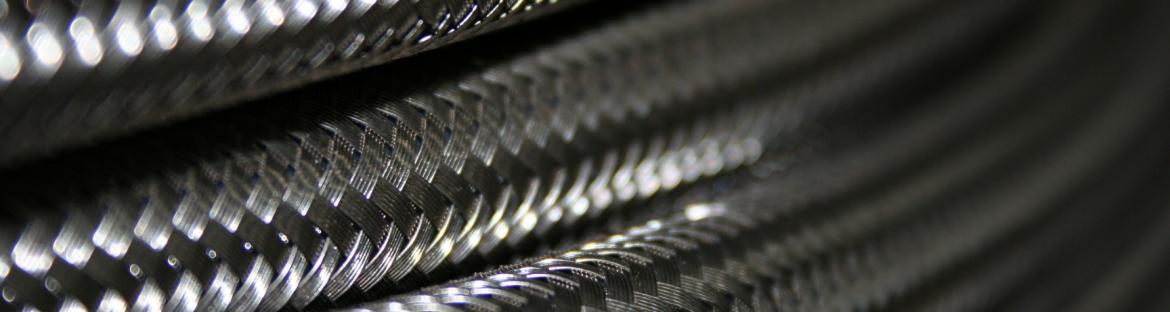

The NX179 is a PTFE hose with stainless steel braid. The hose is produced according to standard SAE J517 - 100R14.

Contact PRO-JETTING now and ask about the affordable offer.

NX179 High Pressure Hose for High Temperatures

3/8" (DN3) - 3/4" (DN20)

The NX179 is a PTFE hose with stainless steel braid. The hose is produced according to standard SAE J517 - 100R14.

Specifications

Core: PTFE
Strengthening: one layer of braided stainless steel 304
Temperature: -50°C to +260°C
Safety factor: 4

Features

  • SAE J517 - 100R14
  • Excellent chemical resistance
  • Excellent temperature properties
  • Low coefficient of friction

Specifications

Core: PTFE
Strengthening: one layer of braided stainless steel 304
Temperature: -50°C to +260°C
Safety factor: 4

Features

  • SAE J517 - 100R14
  • Excellent chemical resistance
  • Excellent temperature properties
  • Low coefficient of friction

NX179

code DN I.D. O.D. W.P. B.P. buig radius
NX179-2 3 1/8" 6.2mm 225bar 900bar 40mm
NX179-3 5 3/16" 7.6mm 190bar 760bar 50mm
NX179-4 6 1/4" 8.8mm 180bar 720bar 75mm
NX179-5 8 5/16" 11mm 175bar 700bar 100mm
NX179-6 10 3/8" 9.5mm 165bar 660bar 125mm
NX179-8 12 1/2" 12.7mm 120bar 480bar 165mm
NX179-10 16 5/8" 18.8mm 88bar 352bar 200mm
NX179-12 20 3/4" 23.1mm 70bar 280bar 230mm
