HDE 55 ELECTRIC DNV High pressure unit

Electric

DNV HIGH PRESSURE UNIT

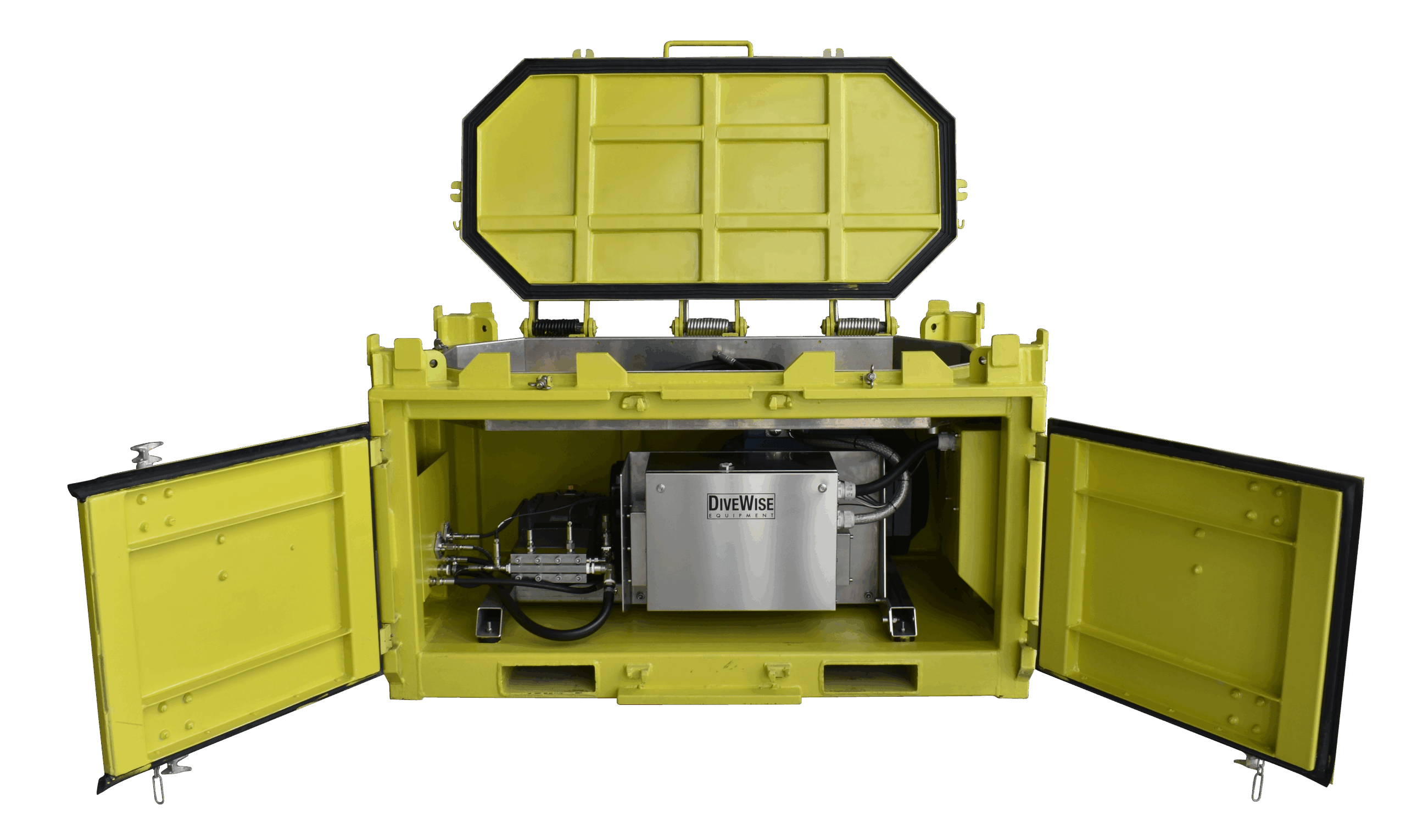

This high pressure unit is conveniently installed in a durable DNV container with stainless steel pump head and frequency inverter for offshore and industrial cleaning applications.

Available with electric drive up to 55 kW, with a maximum
pressure of 1500 bar or a maximum flow of 220 LPM.

The stackable, heavy-duty, DNV certified container has lifting eyes and forklift pockets for easy transportation.

  • 130 - 1500 BAR (1,885 - 21,750 PSI)
  • 19 - 220 LPM (5 - 58 GPM)
  • 55 KW (74 HP)

"Great for offshore usage with salt water pump and frequency inverter in a durable dnv containaer"

Available DNV High Pressure units

Download Product table

SPECIFICATIONS

Frequency inverter      : PRO-JETTING
Power supply              : 3-phase 400VAC / 50HZ
                                 : (optional 440VAC / 60 Hz
Connection                 : 63A 3-phase + N
Motor                         : ABB 250 SMA
Weight                       : 1600 kg (3527lbs)
Drive                         : Electric 3 phases
Dimensions                : 1230x2200x1140mm
                                 : (48x87x45”)
Certifications              : Designed, built and
                                 : Certified to DNV 2.7-1 / BS
                                 : EN12079
                                 : Atex ZONE 2 (OPTIONAL)
                                 : CE
                                 : SIR

FEATURES

  • Heavy-duty DNV container with front access
    doors and top storage lid
  • Stainless steel pump head for salt water
    applications
  • Frequency inverter for continuous pressure
    adjustment
  • Digital controls and ethernet connection for
    automatic and robot integrations via
    PROgram +
  • Easily cleanable water filter
  • Electronic over and under pressure monitoring
  • Electronic water supply pressure monitoring
  • Frequency controlled water supply pump
  • Remote control (optional)
