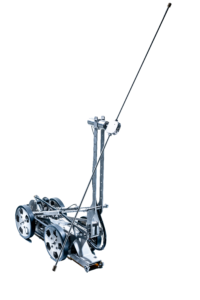

The TWK300 tank cleaning robot has a pneumatic foldable arm to fit 400mm (16”) manholes, and exchangeable lances for intense cleaning, close to the surface of 800 to 3000 mm (31,5 – 120”) tanks and
pipes.
The TWK300 is available with pneumatic or water hydraulic drives to comply with Atex Zone 0 or with powerful electric drives to reach very far inside large diameter pipelines or seawater intakes and full compatibility with other SEWER ROBOTICS and PRO-JETTING robot cable reels and control systems.
Scope of use
Min. access diameter
Drive
Max. pressure
Max. flow
Max. rotation
Max. temperature
Weight
Dimensions
: 800 – 3000mm (31,5-120”)
: 400mm (15,7”)
: Electric
: Water hydraulic (ATEX)
: 500bar (7,250psi) (ATEX)
: 3000 bar (43,500psi)
: 21GPM (80LPM)
: 1000 RPM
: 90°C (194°F)
: 45kg (99lbs)
: 850x350x400mm
(33.5×13.8×15.7”)
Scope of use
: 1000 – 3000mm (40-120”)
Min. access diameter
: 400mm (15,7”)
Drive
: Electric
: Water hydraulic (ATEX)
Max. pressure
: 500bar (7,250psi) (ATEX)
: 3000 bar (40,300psi)
Max. flow
: 21GPM (80LPM)
Max. rotation
: 1000 RPM
Max. temperature
: 90°C (194°F)
Weight
: 45kg (99lbs)
Dimensions
: 850x350x400mm
: (33.5x14x 16”)
